Thuis /Producten/Diesel lasgenerator/For Rail Trailer 600A Best Price MP Muttahida Majlis-e-Amal ARC Welder Diesel Generator Station Mobile Welding Machine

For Rail Trailer 600A Best Price MP Muttahida Majlis-e-Amal ARC Welder Diesel Generator Station Mobile Welding Machine

1 set
MOQ
For Rail Trailer 600A Best Price MP Muttahida Majlis-e-Amal ARC Welder Diesel Generator Station Mobile Welding Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 1-2 YEARS, 1-3 Years
Certificering: CE ISO9001
Model Number: GFW-600
Rated Voltage: 230/400,110/220
Rated Current: 600 Amp
Speed: 1500/1800
Frequency: 50/60
Product Name: Daul welder use welding generator
Welding current: 600 amp
Engine: perkins Cum-mins,Deutz,Yan-mar,Kofodiesel engine
Fuel Tank: 150L
Cooling system: Water-cooled Radiator
Phase: 3 Phase 4 Wire
Application: For Rail,pipeline,Construction, mine
Optional languages interface: Chinese, English, Spanish, Turkish, Russian and French
Options: Colour,Canopy,Tank
Basis informatie
Certificering: CE ISO9001
Model Number: GFW-600
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Our export standard packaged is Polythene Plastic Wrapped,Plywood box packaging is optional.
Productomschrijving
Product Overview

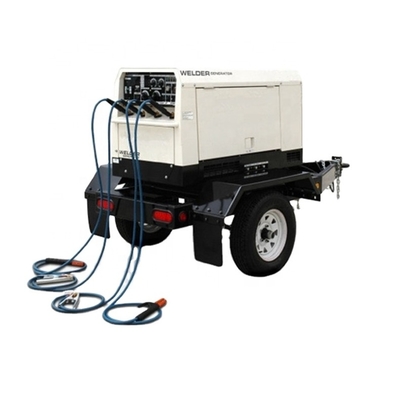

GFW-600A Diesel engine driven welder generator


Our diesel Engine driven welding generator suitable for scale construction work,upholster industry,Rail,Pipeline,field
operation,repairing and the home handyman.

FEATURES:

* Totally reliable performance with smooth starting and a stable constant with IGBT Inverter technology.
*Safe protection: Perfect self-protective function in cases of over-voltage, low-fuel,over-current, over-heat
*Easy to operate:Timer, voltmeter, ammeter, HZmeter, fuel gauge, water temperature table adjust of welding current can be reflected in the control panel
*High-strength Canopy design:It can reduce the noise level while delaying the service life of the engine and other parts.
*Single/Dual operator module
*Simultaneous use of welder and AC power
*Low noise levels
*Easy maintenance
*Large fuel tank

Installation Instructions
PRODUCT SPECIFICATIONS
Welder Genset with Yanmar engine
Dual use Welder Genset
Welder Genset with Trailer
Welding generator
Model
GFW600
Rate current
DC 600 A
Rate Voltage
30 V
Duty cycle
60 %
Rate Speed
1500 rpm/min.
No-load Voltage
Max 70 V
Current adj. range
20-600 A
Daul use
20-350 A
Applicable Electrode
2.0-6.0 mm
Welding Processes
MMA/MIG/FCAW/TIG
AC Generator
Rated frequency
50/60HZ
Phase
1/3 Phase
Rated voltage
110/220,230/400 V
Power factor
1/0.8
Rated output
25kva
Outputs
3 Phase *2 + 1 Phase *1
Rating
Continuous
Engine
Brand
Yanmar,Kubota,Perkins,Cummins,Kofo,Faw
Type
Vertical,4-stroke,water-cooled diesel engine
Rate Speed
1500/1800RPM
100% Load Consumption
4.9 L/H
Battery
12V Maintenance-free battery
Starting System
Electric Start
Dimensions and weight
Dimensions (LxWxH)
2080mm*990mm*1100mm
Dry weight
850Kg
Fuel tank capacity
150L
Noise level 7M
69 dB
Certifications

CE CERTIFICATE

ISO 9001 CERTIFACATE

SABER CERTIFACATE

Successful Project
Work in Philippines
Work in Russia
Work in Israel
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Welder generator compressor in one machine
300A portable Welder generator
5kva 250A welder generator
FAQ
1. What is your MOQ, payment method?

Our MOQ is only 1 set. TT/LC

2.What are your main markets?

Guided by global field of vts have been exported to many countries and regions with its good quality and good service, such as
Egypt,Philippines, Indonesia, Saudi Arabia, Russia, Peru, Chile, UAE, Vietnam,and Africa so on. We will be glad to establish sincere business cooperation with you in the near future.

3. Is there any spare parts you can provide along with genertors to make the maintenance convenient?

We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.

4.Can you offer parts to us if we need?

Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 3-5days.


5. If I want to be your products distributor in our country, what is your distribution policy?

Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.

Contact us

We believe our best quality, excellent service and good credibility are worth your trust!
If you are interested in our products, please contact us for more information!
Looking forward to cooperating with you!
